Enhancing Synchronization Reliability: ODES WTM30 High-Reliability Synchronizing Meter
- TonyZhang
- Aug 31
- 2 min read
Problem Statement
Accurate synchronization is critical for safe and reliable parallel operation of power systems. However, many operators face a recurring issue: high failure rates of synchronizing meters. Frequent malfunctions compromise synchronization accuracy, threaten system stability, and increase maintenance costs.
Issues with Conventional Synchronizing Meters
Conventional meters often suffer from:
Limited measurement accuracy across voltage, frequency, and phase angle ranges.
Vulnerability to electromagnetic interference in harsh substation environments.
Reduced lifetime due to thermal, humidity, or mechanical stress.
Complex integration requiring multiple devices, leading to higher wiring density and potential errors.

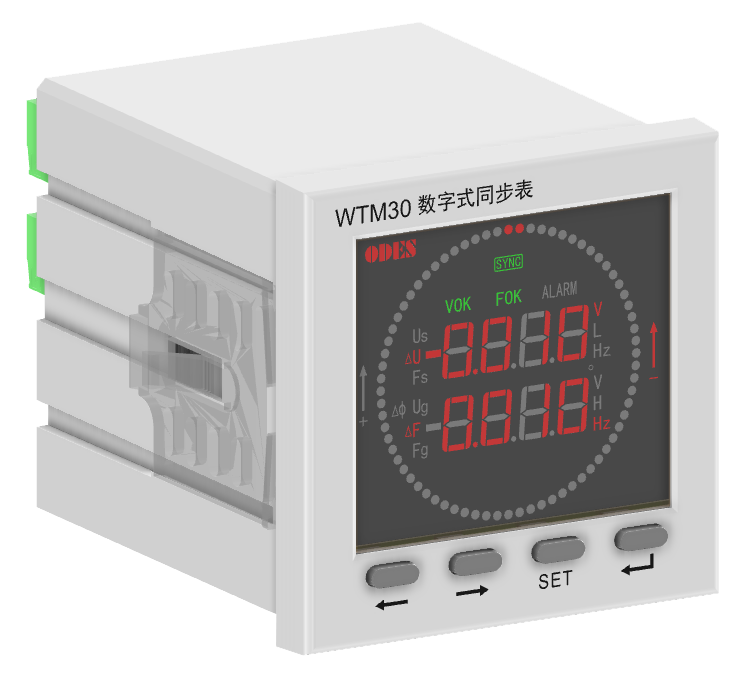

Solution Approach: ODES WTM30 Synchronizing Meter
The WTM30 synchronizing meter is engineered to deliver reliable, precise synchronization control in demanding environments. Through precision design, high-quality components, and EMC-enhanced construction, it significantly reduces failure rates while improving system safety and operational continuity.
Core Features & Capabilities
High-accuracy measurement: Wide-range measurement of voltage, frequency, and phase difference ensures safe and precise synchronization.
Reliability and long service life: Built with robust components and advanced packaging technology for continuous operation under thermal and environmental stress.
Strong EMI immunity: Enhanced EMC design ensures stable operation even in high-interference environments.
Integrated functionality: Consolidates multiple monitoring and measurement functions into a single device, simplifying installation and reducing wiring complexity.
Energy efficiency: Low-power design improves energy utilization across the control system.
Standards, Validation & Testing
The WTM30 is type-tested in accordance with IEC 60255 series requirements for measurement and monitoring devices. Validation covers EMC performance, dielectric withstand, thermal endurance, and long-duration operational reliability.
Quantified Benefits
Reduction in synchronizing meter failure rate compared to conventional devices.
Fewer unscheduled maintenance interventions and reduced operational downtime.
Improved synchronization precision, enhancing grid and generator safety during parallel operations.

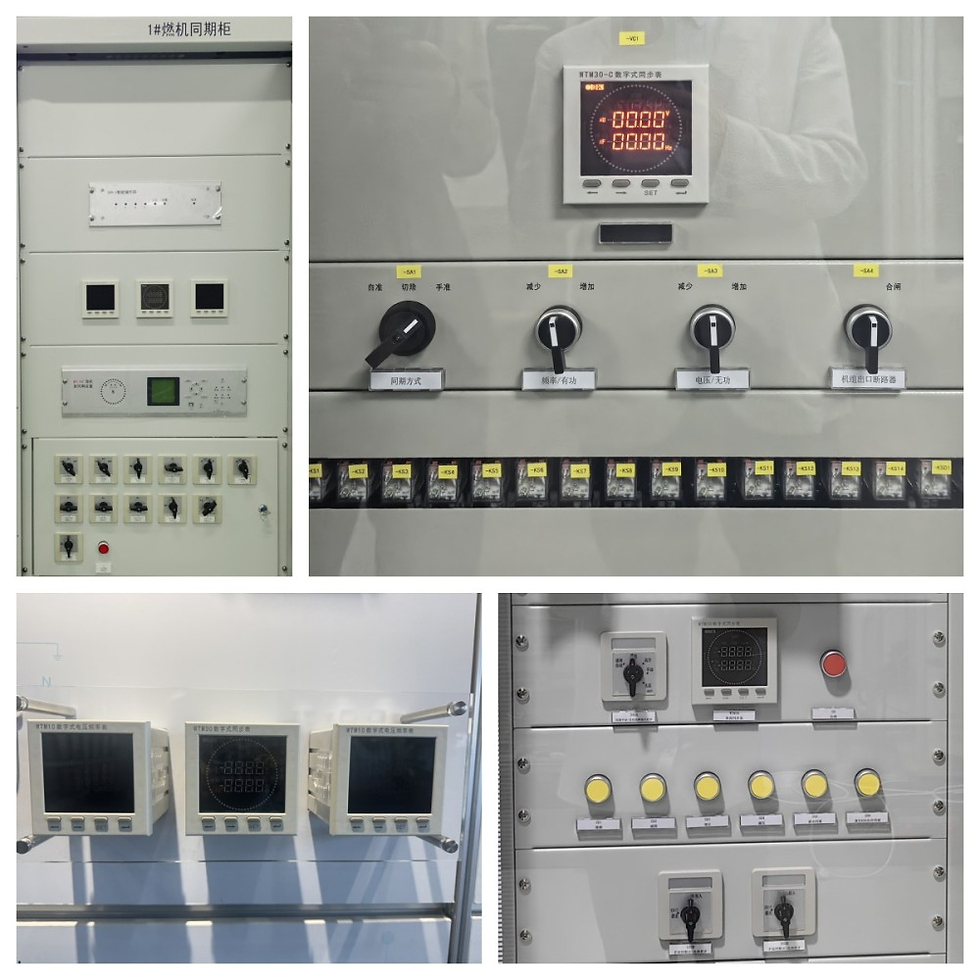

Application Domains
Utility substations: Reliable synchronizing during busbar and generator switching operations.
Industrial plants: Stable parallel operation of onsite generation units.
Renewable integration: Secure synchronization of distributed energy resources with the main grid.
The ODES WTM30 synchronizing meter provides a high-reliability, standards-aligned solution to the persistent problem of meter failure. With precise measurement, strong EMC immunity, and robust design, it ensures safe, long-term synchronization performance in modern power systems.
For datasheets, technical guidance, or evaluation samples, please contact: tonyzhang@odes.com.cn
Or visit: https://www.odes-electric.com/
